CATV Tester Cable TV Handle Signal Level Meter S110 DB Best Tester Suitable for The Television and Cable Television Engineering Installation and Detection

Hottest Sales CATV Tester Cable TV Handle Signal Level Meter S110 DB Best Tester Suitable for The Television and Cable Television Engineering Installation and Detection Reviews

So you can check out the other reviews at Amazon.com

only with $

• ◼【Application】RY-S110 Signal level meter applies to the need of the television and cable television engineering installation and detection. It is the high-performance surveying instrument specially designed for the cable television technical personnel.
• ◼【S110 CATV Tester Range of frequency】 47MHz ~ 870MHz/S110D 5MHz ~ 870MHz；Channel:U.S. Standard Channel USA STD-CATV/U.S. digital standard channels USA STD-CATV
• ◼【Carrier-to-noise ratio measurement】cable tv handle digital signal level meter Measuring range: 20dB ~ 50 dB;Measurement accuracy: ± 3dB (68 ℉ ± 41 ℉);Resolution: 0.5dB
• ◼【How to switch to US Channel】The way to switch S110 Cable TV Signal Level meters Channel to US Channel: Enter VOLT and then press ./Z button, and the right corner please switch to 2ch, then you entered US channel.

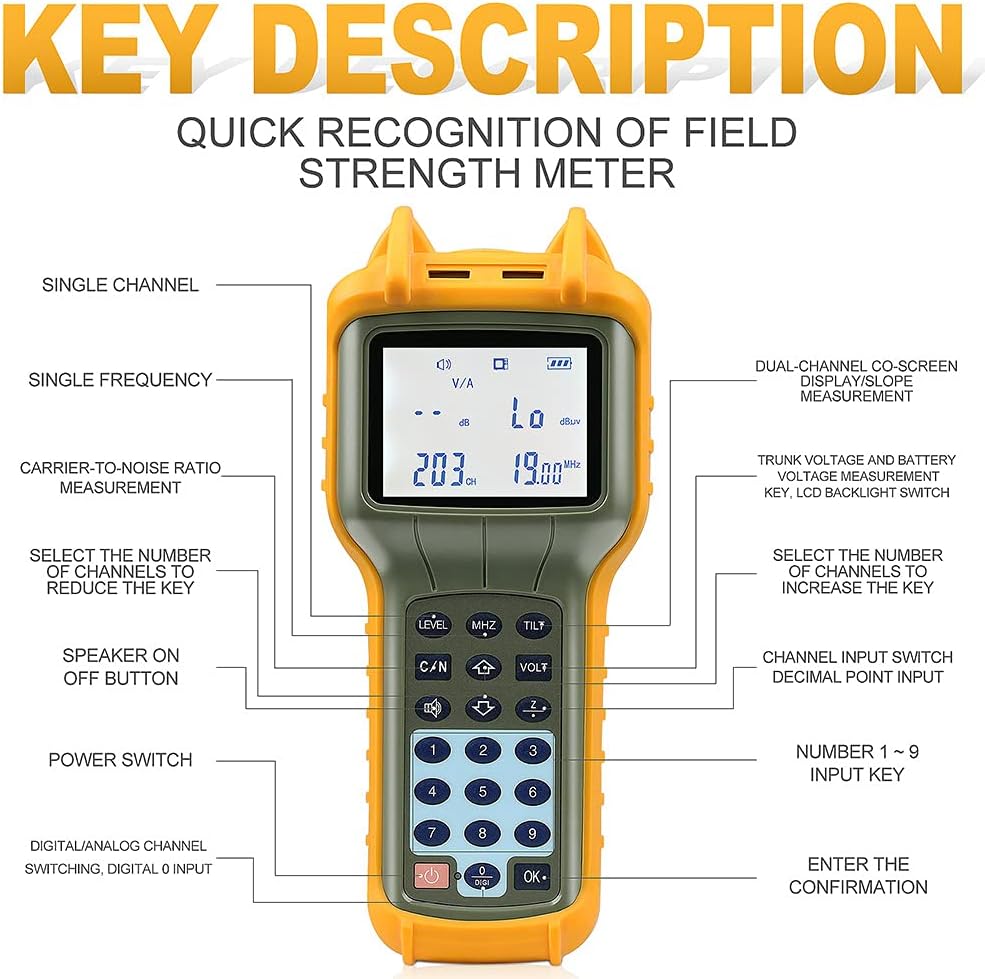

• ◼【S110 DB tester highlights】 S110 digital signal level meter employs high brightness backlight operating modes, with clear LCD screens, dual-channel measurement display, so it is convenient and pragmatic; besides, numeric keypad input allows it easy to operate.

› See more product details

Product Description

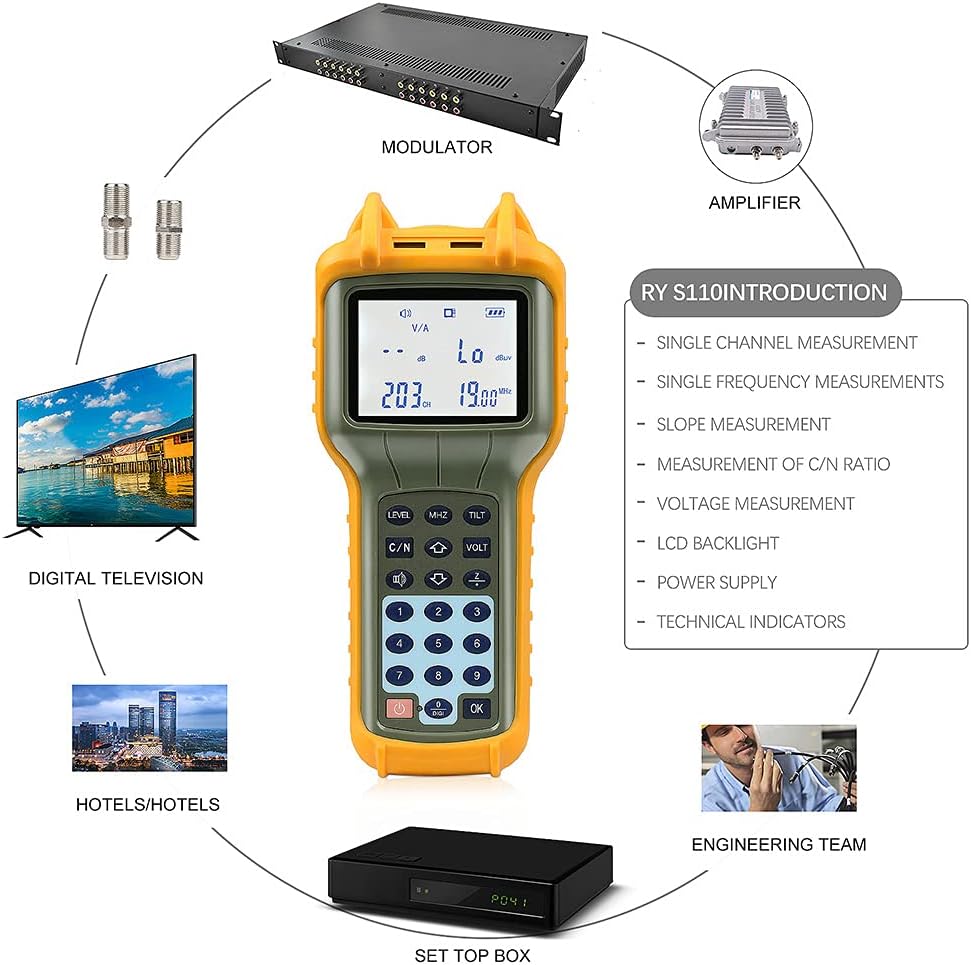

RY-S110 Signal level meter TV Field Intensity applies to the need of the television and cable television engineering installation and detection, it is the high-performance surveying instrument specially designed for the cable television technical personnel.

S110 CATV Tester Frequency/channel
Range of frequency: S110 47MHz ~ 870MHz/S110D 5MHz ~ 870MHz
Channel:U.S. Standard Channel USA STD-CATV/U.S. digital standard channels USA STD-CATV
Frequency accuracy: ± 50 * 10E-6 (68 ℉ ± 41 ℉)
Resolution: 50KHz
Measurement bandwidth: 280KHz ± 50KHz

Level measurement
Measuring range: 30dBuV ~ 120 dBuV
Measurement accuracy: ± 2dB (68℉ ± 41 ℉)
Resolution: 0.5dB
Detection method: peak detection
Input Impedance: 75ω (unbalanced, F-type connector)

Voltage measurement
Input range: 1 ~ 100V (AC / DC)
Measurement accuracy: ± 2V
Resolution: 1V
Operating temperature: 0 ℃ to 40 ℃(32℉ to 104℉)

Specification:

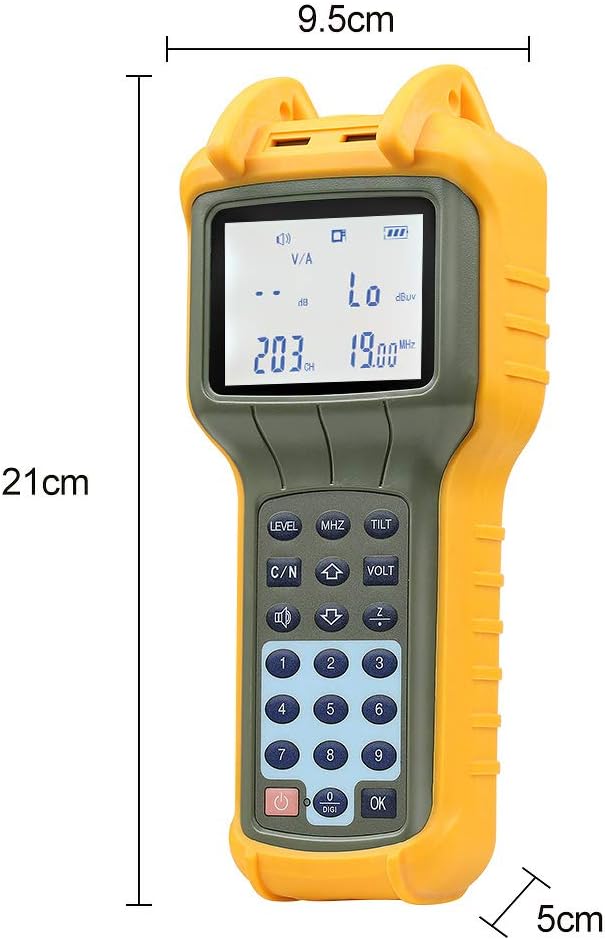

Dimensions: 8.27inch * 3.54inch * 1.89inch
Total Weight: 1.43LB
Audio output: built-in speaker (single-frequency mode manual start)

S110 Signal level meter Package:
1pc x Main unit
2pc x RF input connector
1pc x Power charger
1pc x Manual
